Product Details:
|
| Warranty: | 3years | Chargeable: | Yes |
|---|---|---|---|
| Application: | BOATS, Electric Power Systems, Solar Energy Storage Systems, Uninterruptible Power Supplies, Security System, UPS, WIND SYSTEM, Lighting, Medical Equipment | Battery Size: | 12V85AH |
| Battery Type: | AGM | Weight: | 26kg |
| Product Name: | Lead Acid Battery | Length (mm): | 286 |
| Width (mm): | 174 | Height (mm): | 218 |
| Total Height (mm): | 225 | Internal Resistance (fully Charged): | About 4.6mΩ, 25 ℃ |
| Short-circuit Current: | 2207A | Self Discharge (25 ° C): | <4%/month |
| Recommended Operating Temperature: | 15 ° C~25 ℃ | Recommended Charging Current: | 17A |
|
Warranty
|
3years
|
|
Chargeable
|
Yes
|
|
Application
|
BOATS, Electric Power Systems, Solar Energy Storage Systems, Uninterruptible Power Supplies, Security system, UPS, WIND SYSTEM, Lighting, medical equipment
|
|
Brand Name
|
Shuangdeng
|
|
Model Number
|

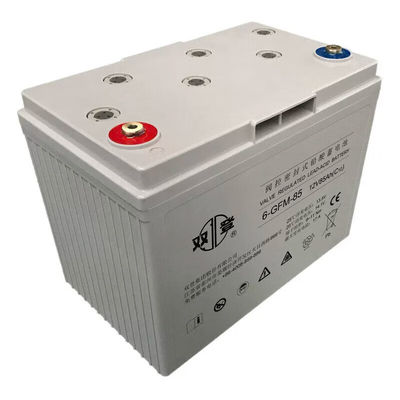

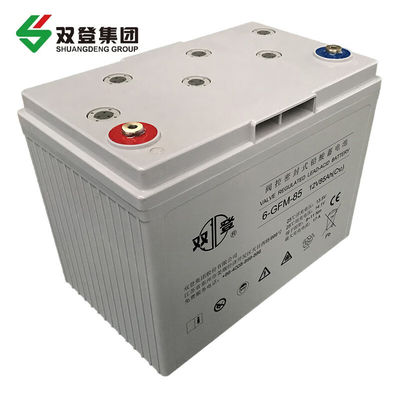

6-GFM-85
|
|
Place of Origin
|
China
|
|
|
Zhejiang
|
|
Weight
|
26kg
|
|
Product name
|
Lead Acid Battery
|
|
Length (mm)
|
286
|
|
Width (mm)
|
174
|
|
Height (mm)
|
218
|
|
Total height (mm)
|
225
|
|
Internal resistance (fully charged)
|
About 4.6mΩ, 25 ℃
|
|
short-circuit current
|
2207A
|
|
Self discharge (25 ° C)
|
<4%/month
|
|
Operating temperature range
|
Discharge: -40 ℃~50 ℃ Charging: -20 ° C~45 ℃ Storage: -20 ° C~40 ° C
|
|
Recommended operating temperature
|
15 ° C~25 ℃
|
|
Recommended charging current
|
17A
|
|
Charging voltage (25 ℃)
|
Float charging: 2.25V/monomer temperature compensation coefficient: -3mV/° C Average charging: 2.35V/monomer
|
|
terminal
|
M6
|
|
Shell material
|
ABS
|
|
The Effect of Temperature on Capacity (C1o)
|
105% @ 40 ℃ 85% @ 0C 60% @ -20 ° C
|
|
Design life (25 ℃)
|
10 years
|
