Product Details:
|
| Warranty: | 3years | Chargeable: | Yes |
|---|---|---|---|
| Application: | BOATS, Electric Power Systems, Solar Energy Storage Systems, Uninterruptible Power Supplies, Security System, UPS, WIND SYSTEM, Lighting, Medical Equipment | Weight: | 9kg |
| Product Name: | Lead Acid Battery | Length (mm): | 165 |
| Width (mm): | 125 | Height (mm): | 170 |
| Total Height (mm): | 174 | Internal Resistance (fully Charged): | About 11.3mΩ, 25 ℃ |
| Short-circuit Current: | 899A | Self Discharge (25 ° C): | <4%/month |
| Recommended Operating Temperature: | 15 ° C~25 ℃ | Recommended Charging Current: | 5.2A |
Warranty | 3years |
Chargeable | Yes |
Application | BOATS, Electric Power Systems, Solar Energy Storage Systems, Uninterruptible Power Supplies, Security system, UPS, WIND SYSTEM, Lighting, medical equipment |
Brand Name | Shuangdeng |

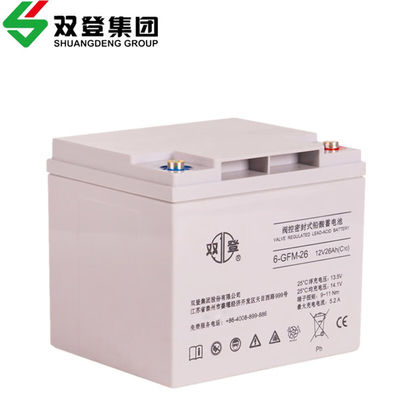

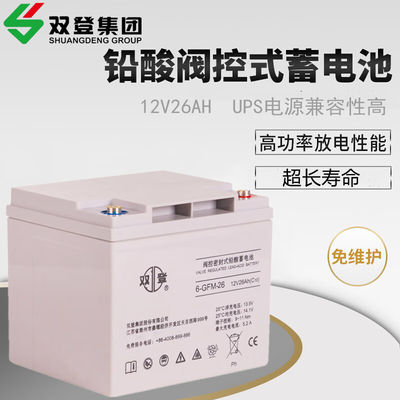

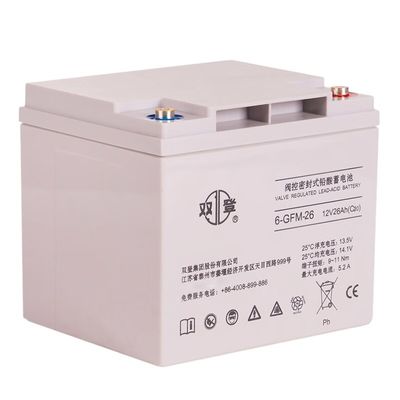

Model Number | 6-GFM-26 |
Place of Origin | China |
Zhejiang | |
Weight | 9kg |
Product name | Lead Acid Battery |
Length (mm) | 165 |
Width (mm) | 125 |
Height (mm) | 170 |
Total height (mm) | 174 |
Internal resistance (fully charged) | About 11.3mΩ, 25 ℃ |
short-circuit current | 899A |
Self discharge (25 ° C) | <4%/month |
Operating temperature range | Discharge: -40 ℃~50 ℃ Charging: -20 ° C~45 ℃ Storage: -20 ° C~40 ° C |
Recommended operating temperature | 15 ° C~25 ℃ |
Recommended charging current | 5.2A |
Charging voltage (25 ℃) | Float charging: 2.25V/monomer temperature compensation coefficient: -3mV/° C Average charging: 2.35V/monomer |
terminal | M6 |
Shell material | ABS |
The Effect of Temperature on Capacity (C1o) | 105% @ 40 ℃ 85% @ 0C 60% @ -20 ° C |
Design life (25 ℃) | 10 years |
